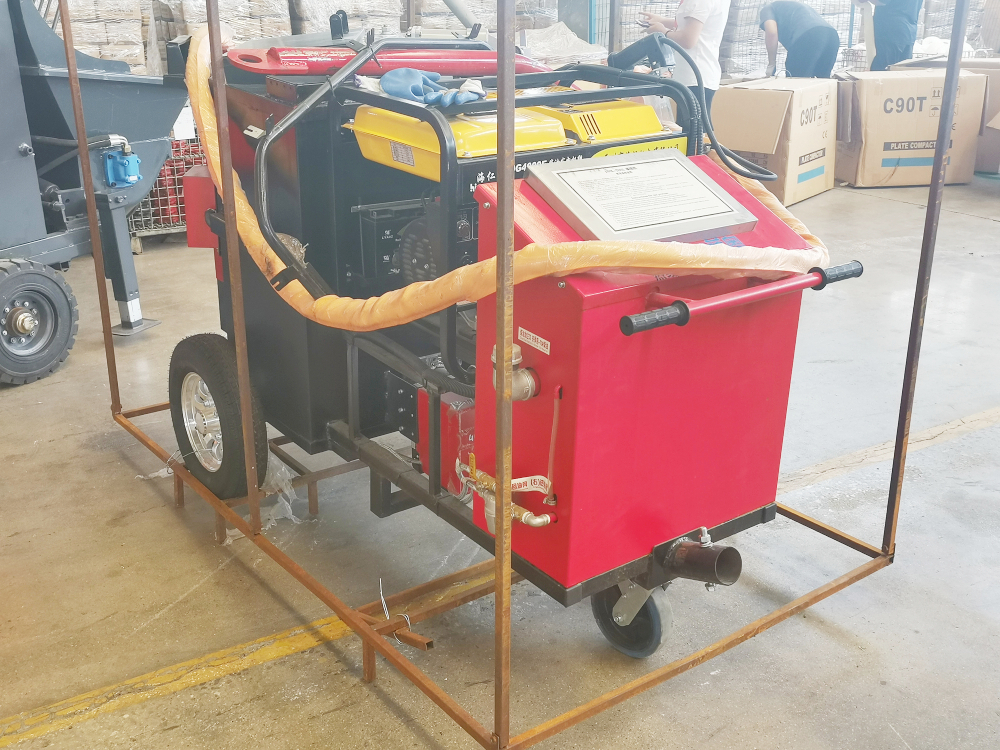

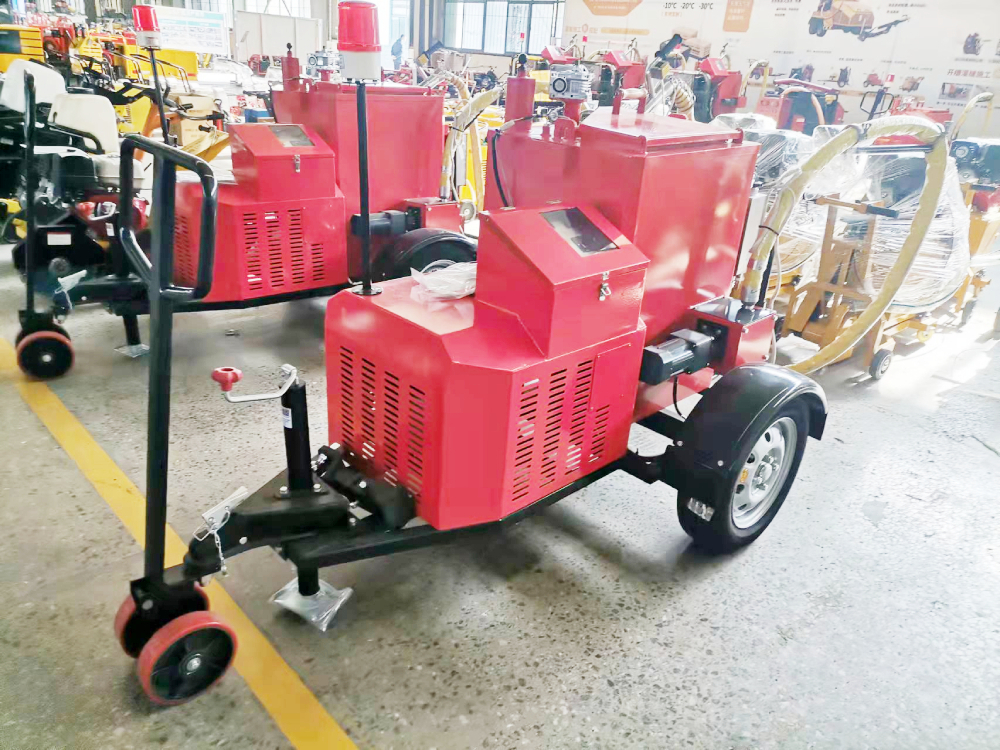

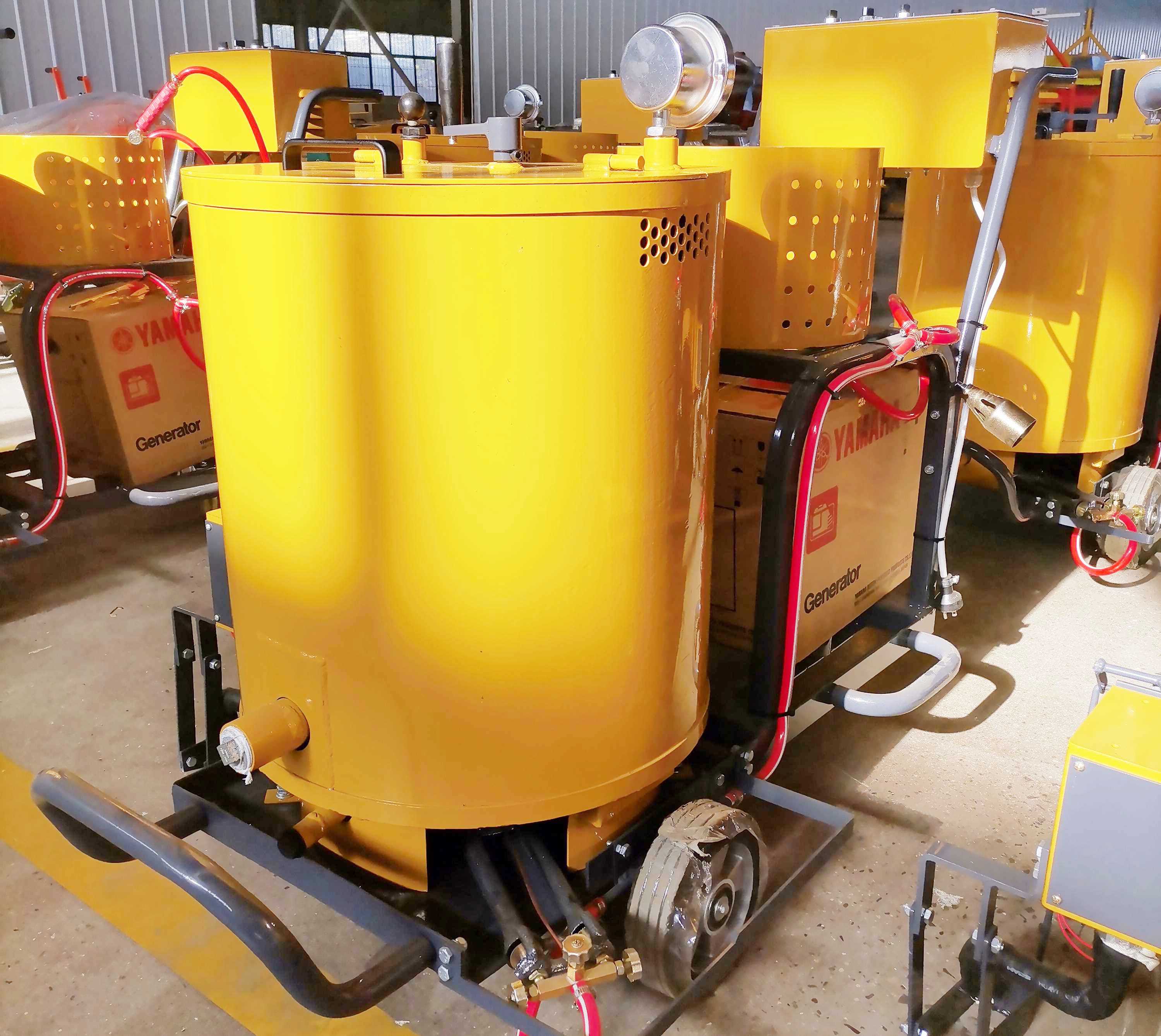

Hand Push Asphalt Filling Machine

Mainly used for asphalt pavement or cement pavement cracks and asphalt grouting.It is suitable for ordinary asphalt and joint glue materials;the joint compound is output by an asphalt pump,and the flow rate can be adjusted.
CONTACT PURCHASE

Product selling point:



1. The equipment adopts heat-conducting oil circulating indirect heating to ensure that the material does not paste,burn,or change color.
2. Hand-held grouting,adjustable flow,flexible and convenient operation.
3. The heating temperature is automatically detected by the sensor and adjusted automatically,without flameout,which is convenient for long-term construction.
4. Asphalt material pump,with suction function,can be forward and reverse,the pump body is not blocked and easy to clean.



Product parameter:



Model

SQ-60

SQ-100

SQ-120

Engine

Yamaha ET950

Honda 2KW

Imported Honda gasoline generator

Weight(KG)

165kg

280kg

390kg

Dimension: (L*W*H)

1500×800×1250mm

2000*1000*1300mm

2150*1250*1460mm

Tank Volume

60L

100L

120L

Filling Speed

0-25m/min

0-25m/min

0-25m/min

Standard configuration

of discharge pipe length

4.5m

5m

6m

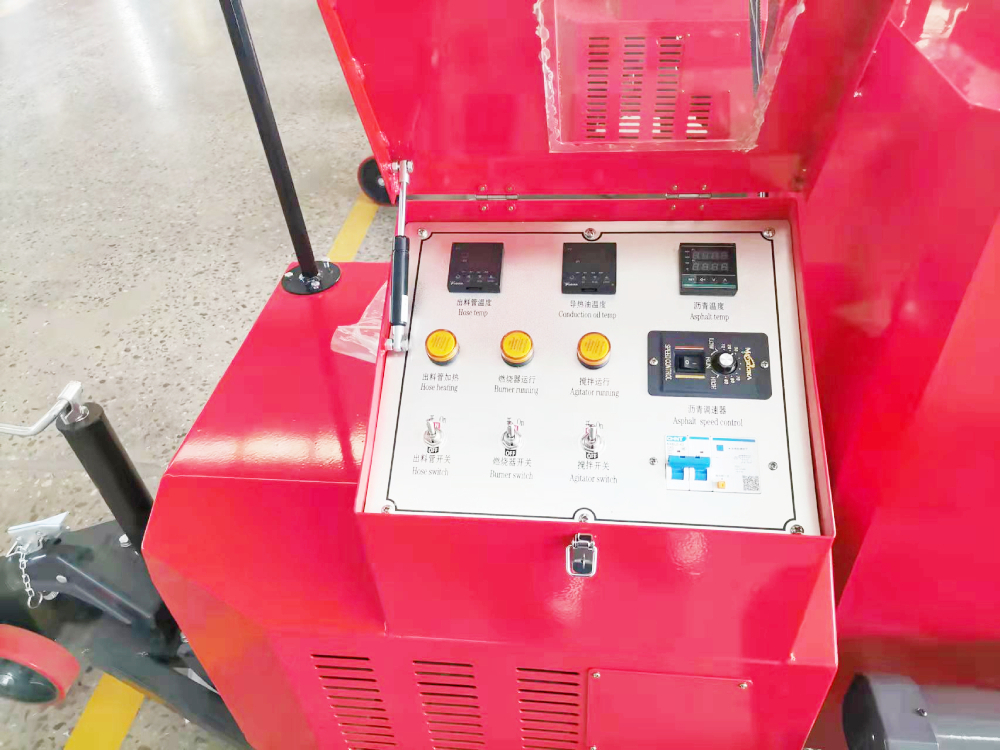

Control System

Full electronic constant temperature control

Melting time

45minutes

45minutes

45minutes



Details
