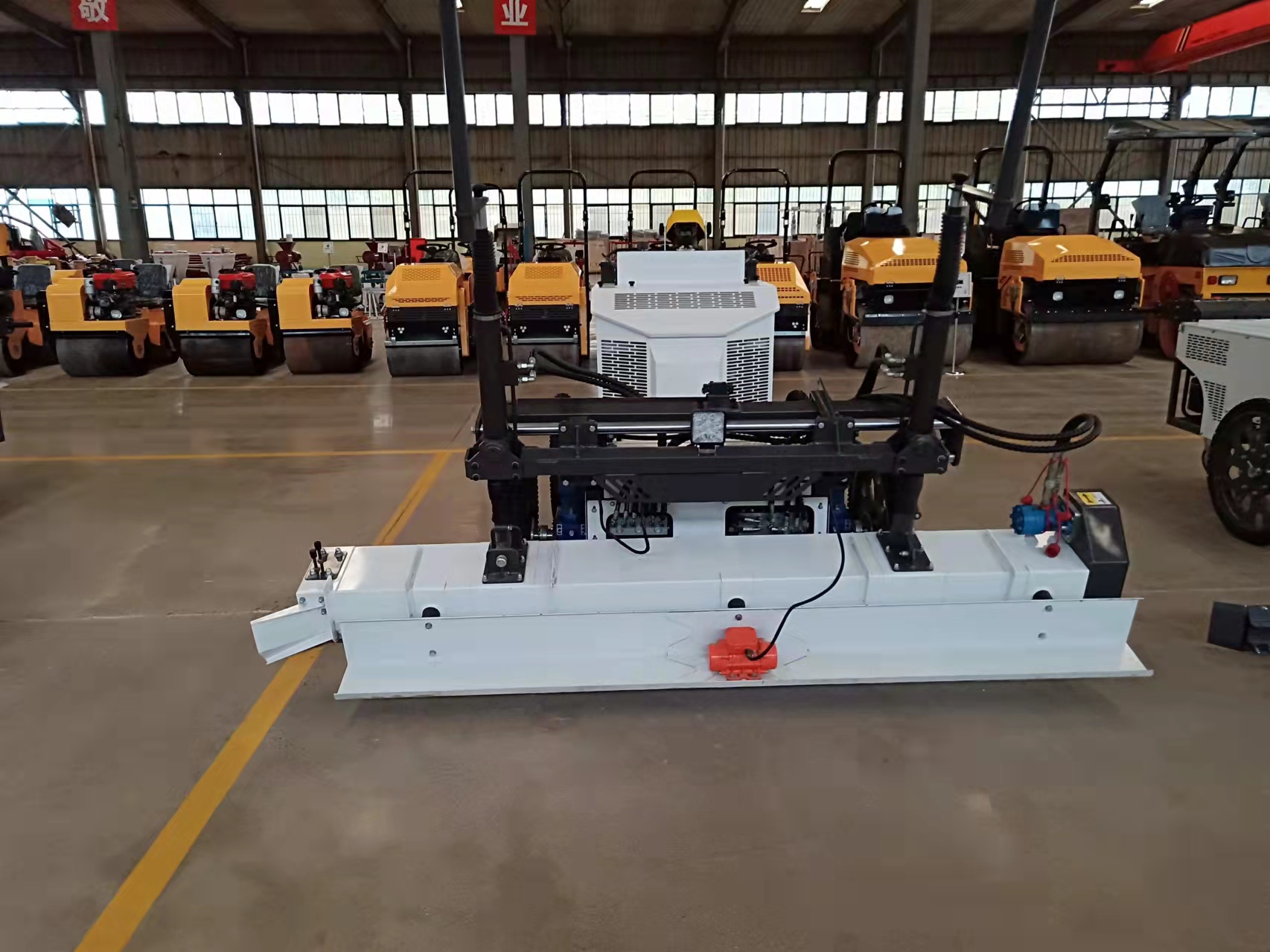

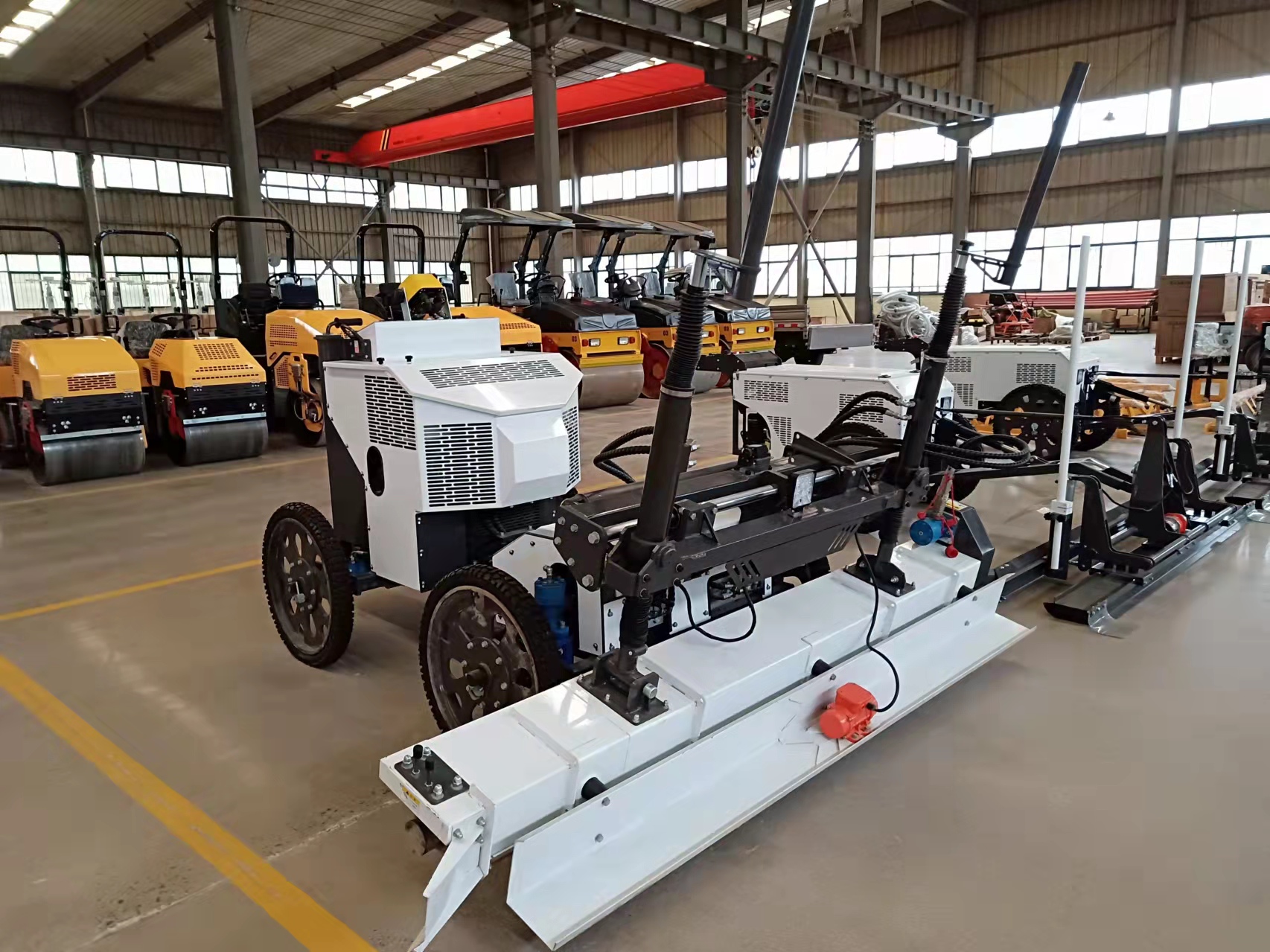

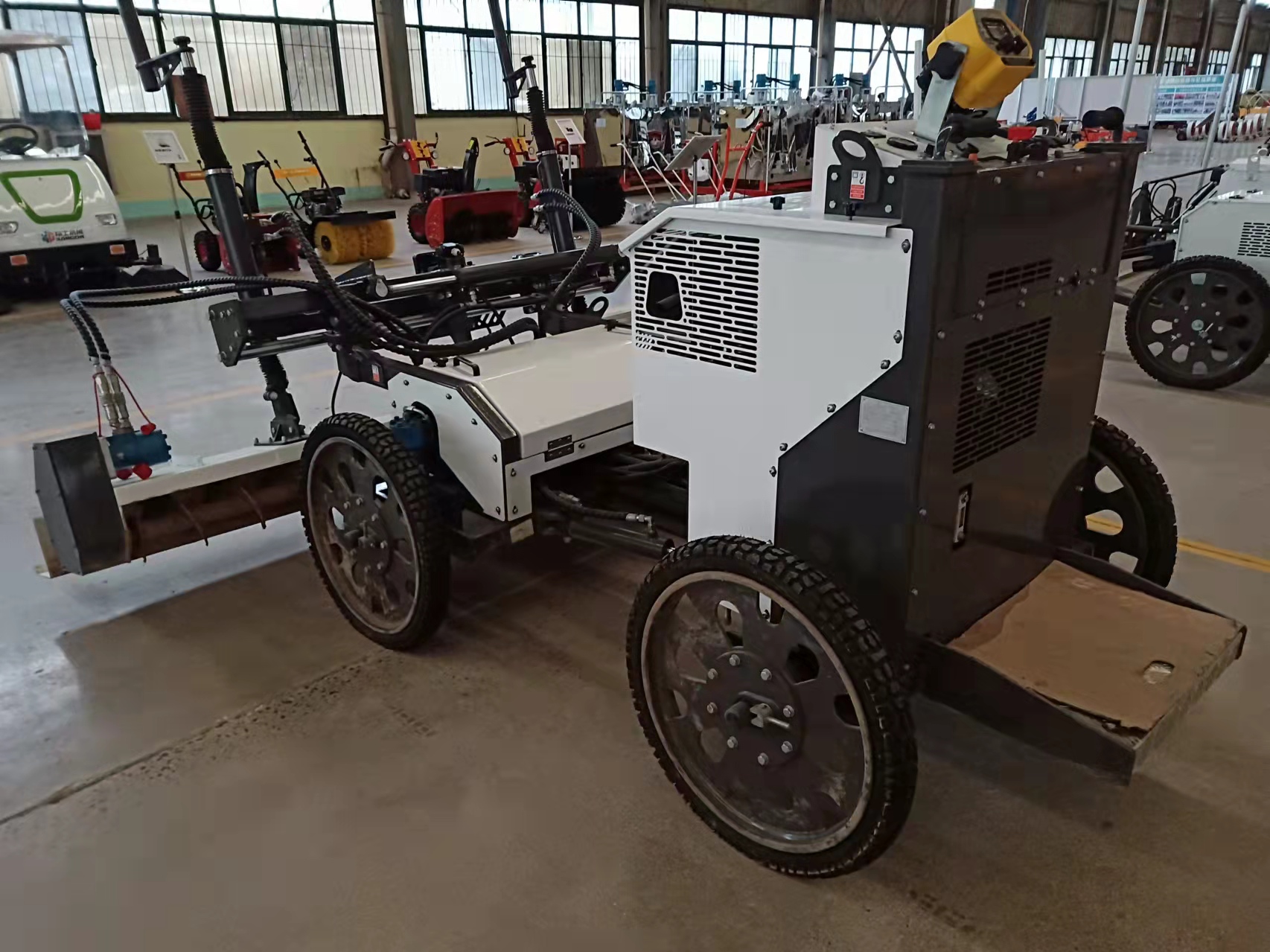

Concrete Laser Screed Paver
The laser leveling machine is developed in accordance with the increasing demand for ground quality such as strengt
Product selling point：
1. The leveling mechanism is driven by hydraulic pressure, cooperates with the laser system and the computer control system to complete the leveling work while automatically leveling, and the work efficiency is very high.
2. Concrete leveling head, the height of the concrete is controlled by the screw head to make it reach the required ground height, and the ground is leveled at one time through the vibration of the vibrator, saving time and effort!
3. The steering, forward and backward operations are integrated in the handle, and the operation buttons are distributed on the side of the seat. It can slide 50 cm left and right, making the operation more convenient and simple!
4. Unique button-operated driving, convenient for construction! Greatly reduce labor intensity.
5. Save labor and improve construction efficiency-the machine does not need to be leveled manually during construction, and it is leveled by the screw head at one time. After the initial leveling, one person operates the machine, and the work efficiency can reach 3000-3500 square meters a day.
Product parameter：
| Model | SQ -200 |
| Type | Gasoline engine double cylinder |
| Paving method | Wrench paving |
| Power | 20HP/3600rpm |
| Mailbox volume | 40L |
| Exciting force | 500N |
| Vibration frequency | 50Hz |
| Wheel | Solid stab-resistant tires |
| Way to control | Microcomputer laser scanning |
| Width | 2500mm |
| Screed height | 330mm |
| Dimensions | 2554 x 2500 x 2360mm |
| Preset pressure | 7MPa |
| Weight | 1080KG |
