Model

Concrete Productivity

Engine

Hydraulic Motor

Water Tank

Wheelbase(mm)

Maximum Vehicle Speed

Equipment Weight(Kg)

Dimensions(L×W×H ) mm

SQ650

6.5m3/drum

Deutz 92Kw

American Sunny

1465L

2,850

40Km/h

12,520

8450×3050×4830

SQ550

5.5m3/drum

FAW 110Kw

American  Sunny

860L

3,350

42Km/h

11,200 8450×3100×4580

SQ400

4.0m3/drum

Yuchai 85Kw

American  Sunny

660L

2,480

35Km/h

9,000

7640×2870×4750

SQ260

2.6m3/drum

Yuchai 78Kw

BM5-125

500L

2,800

30Km/h

6,500

7860×2750×4100

SQ350

3.5m3/drum

Yuchai 85Kw

American  Sunny

620L

2,900

30Km/h

7,500

7830×2680×4170

SQ180

1.8m3/drum

Yuchai 78Kw

BM5-125

500L

2,600

30Km/h

6,500

7300×2650×3750

SQ120

1.2m3/drum

Yunnei 55Kw

BM5-125

400L

2,300

30Km/h

4,185

6400×2550×3300

Product Parameters

SANQ Self Loading Concrete Mixer Truck

Different Sizes to Choose:1.2m3-1.8m3 - 2.6m3 - 3.5m3 - 4m3 - 5.5m3 - 6.5m3

Only One Mixer Can Automatically Feed, Mix, Transport and Discharge Concrete

Optional Configuration: Air Conditioner, Famous Brand Engine, Weighing System, High Pressure Washer, Automatic Lubricate

Custom-Made Deign of Color, Chassis, Cab, Mixer to Satisfy Customer Need

Compared to Concrete Plant , Self-load Mixer is More Convenient and Flexible

□

✔

□

✔

□

✔

□

✔

□

✔

Sales Points

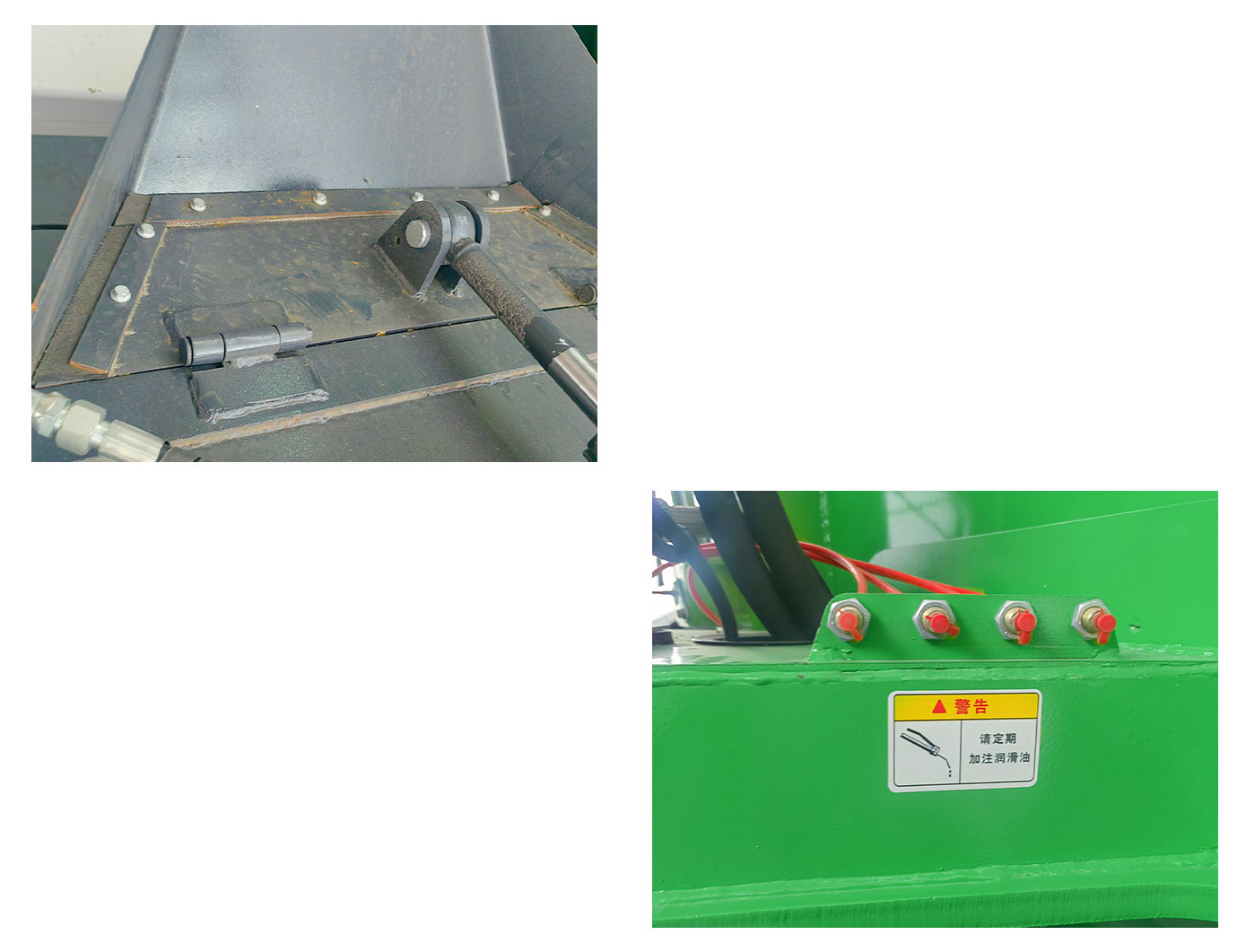

Hopper Seal Upgrade

Lifting Hopper Included Seal Device, Avoid Leakage of Material

①

External Lubrication Device

Lubrication Device Outside, More Easily Maintain Entire Equipment

②

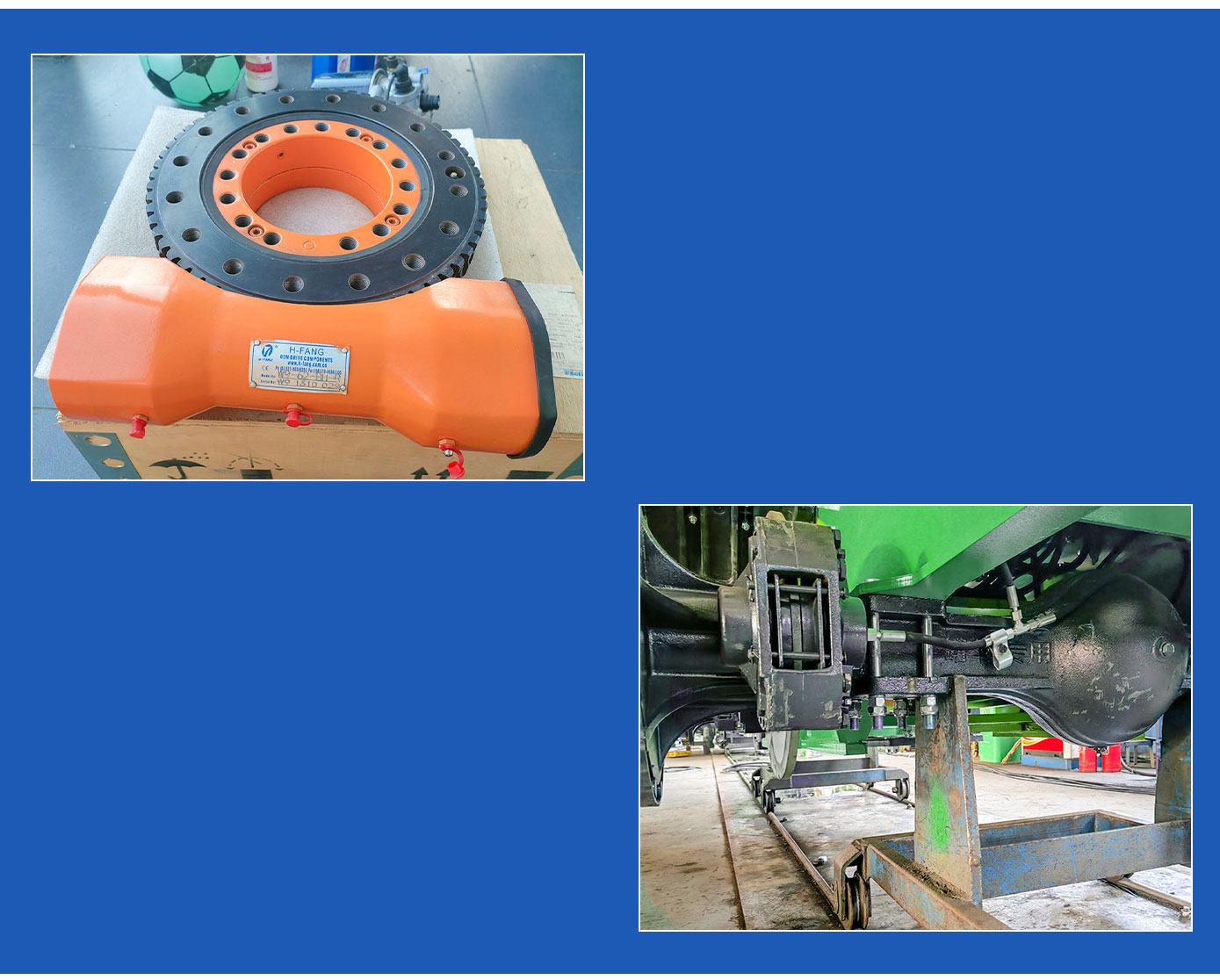

Enclosed Slewing Ring

Closed Rotary Support Can Make the Rotation of the Drum Body Better

③

Dedicated Axle

Special Axle for Loading Truck Use, More Reliable and Durable

④

Foldable Hydraulic Discharge Chute

It can Discharge Concrete Automatically, Safely and Conveniently

⑤

Anti-Dust Device

Hydraulic Cylinder is Equipped With Nylon Cloth Dust Cover to Prevent Sand Enter During Operation

⑥

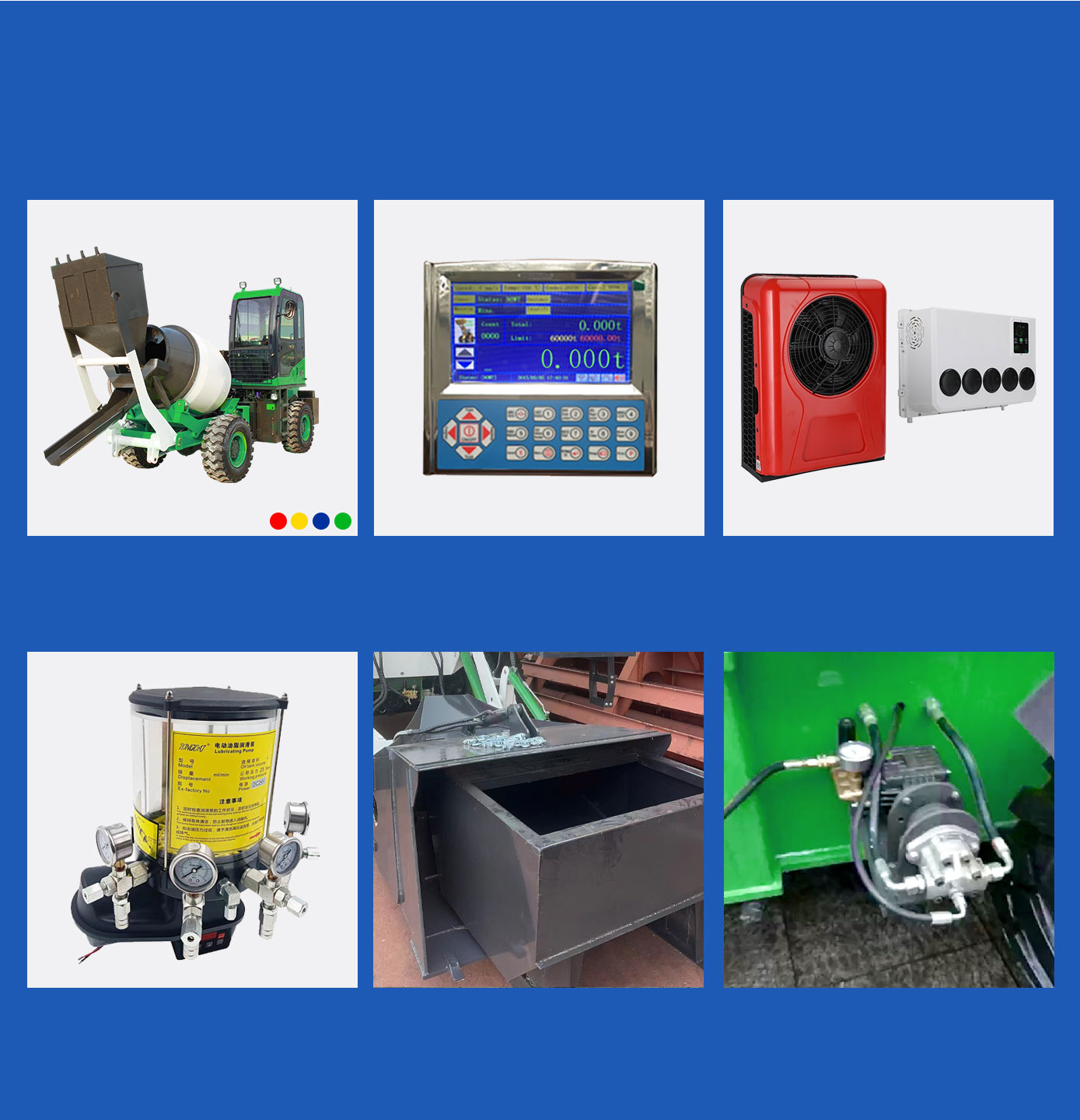

Customization and Optional Parts

Customized Body Color

Aggregate Weighing

Air Conditioner

Butter Lubrication Device

Water Bucket

High Pressure Washing

Cases

• Country: Kazakhstan

• Arrival time: 2022/7

• Delivery Time: 2022/6

• Project: Build Houses
